IP Communication System

Request the full specification sheet from our team.

Overview

Model: HCC-01 IP / HCC-07 IP

Brand: NANYANG

Origin: China

For product orders and the best support, please contact us:

Hotline: (+65) 6230 9110
Email: services@meditechasia.com

  • SKU : CODACOELE

  • Category : CODACO ELECTRONIC

  • Popular keywords : Nurse call System

codaco

About
One of the main subjects of Codaco activity is the area of communication systems for healthcare. Cadaco currently offer an integrated range of communication and signaling devices intended for hospitals, sanatoria, social care institutes and similar facilities. This unique and comprehensive programme which Codaco have developed ensures reliable communication between clients and personnel. From calling equipment in surgeries and nurse-patient signaling system, right up to an integrated and comfortable communication system for inpatient wards of medical facilities. A high level of comfort for patients and personnel of medical facilities, easy operation and reliability are our priorities.

Communication systems nurse patient for healthcare and social care facilities
We manufacture modern communication and signaling and nurse patient communication systems that will surprise you with above-standard functions, reliability and a favorable price. They are used in health care and social services.

TECHNICAL FEATURES

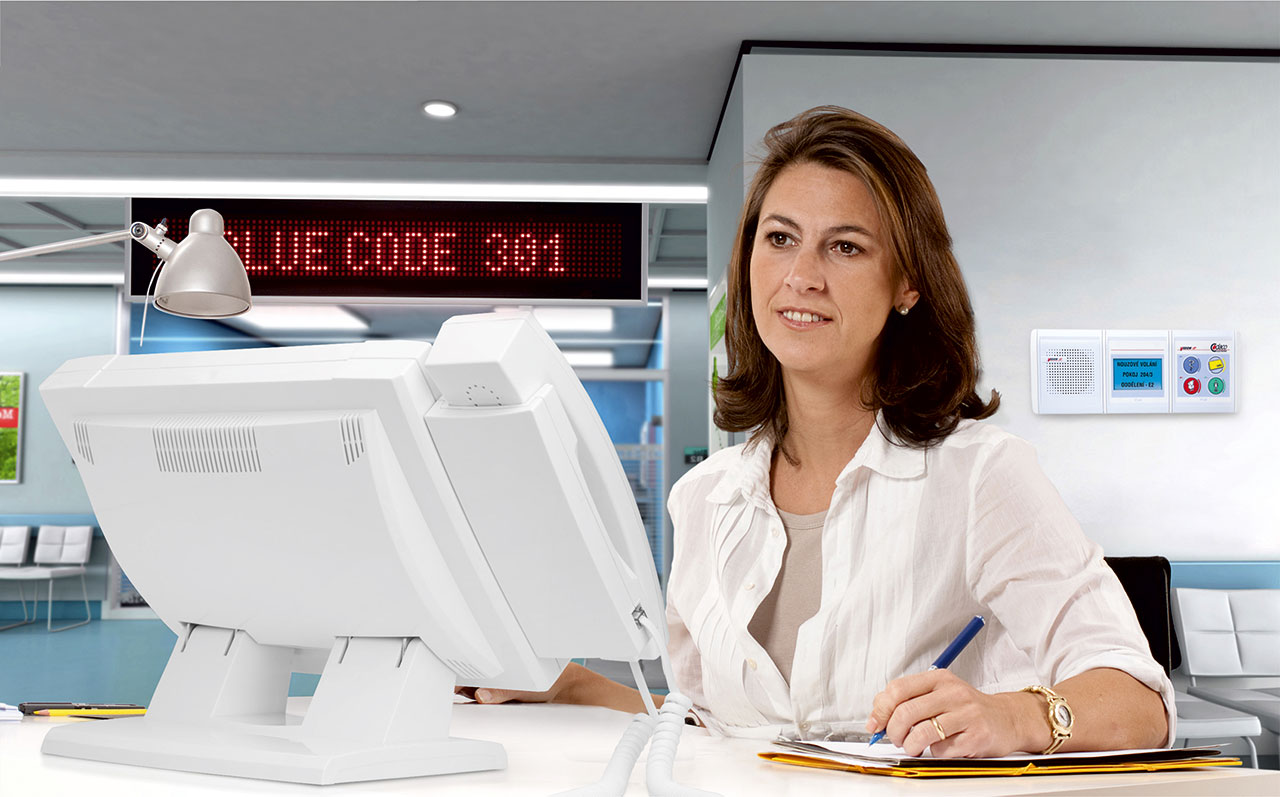

codaco-1

IP Communication System

The new IP model range with touch screen offers a whole new direction for hospital communication systems focussing on the future. The diverse configuration system can be used to ensure the required level of comfort.

GENERAL CHARACTERISTICS OF SYSTEM HCC-07 IP

  • Connection of all elements via modern LAN technology

  • Clear arrangement and simplicity of operation

  • Greater user comfort

  • Saving history of all call types

  • Reliability of operation

  • Autodiagnostics of system

  • Simple installation and servicing of equipment

  • System complies with the standard DIN VDE 0834



New Functions of the System HCC-07 IP
CALLING ANCILLARY STAFF

  • Coffee, food etc…


ROOM TERMINAL

  • Presence of expert staff in room (green button)

  • Presence of ancillary staffing room (yellow button)

  • Programmable function for doctor’s blue line

  • Voice call of doctor

  • Registration of personnel using wireless RFID cards

PATIENT SOCKET

  • Button for cancellation and activation of call directly at bed

  • LAN module for connection of PC

CALLING WHEN THE UNIT IS DISCONNECTED

  • Activation of calling during disconnection or a fault of the patient unit (headphones, buttons) from the socket.

PATIENT EARPHONE

  • Display of time and current entertainment programme on display

  • Selection of up to 10 entertainment programmes

  • Two programmable buttons for controlling lights or other sources of calling



Products

codaco

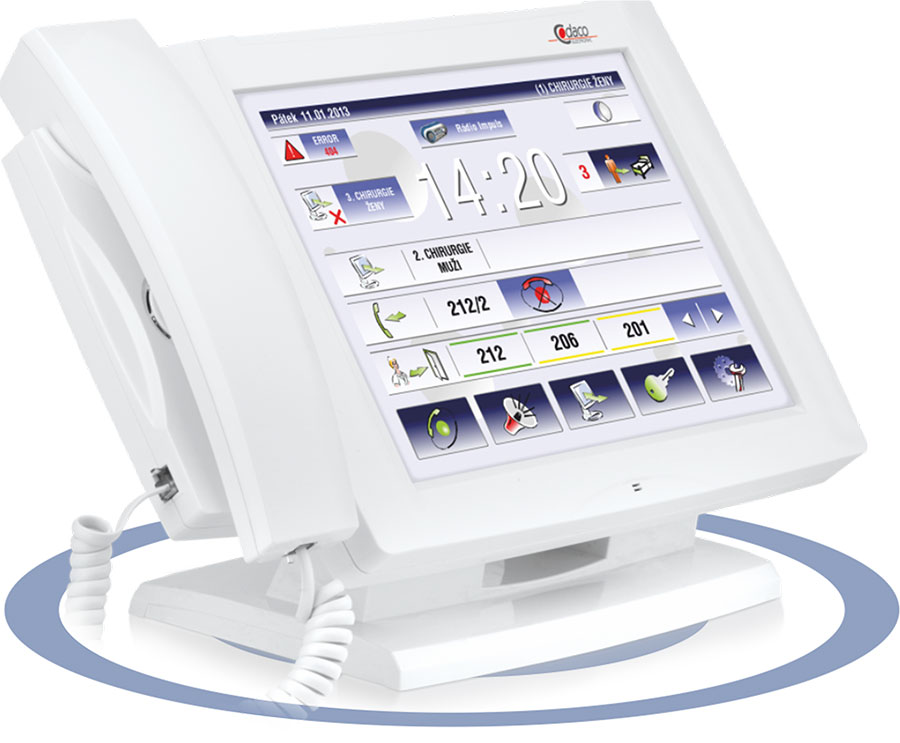

Master terminal MT-07 IP

codaco

Description & Function

  • very comfortable and clearly arranged graphic user environment

  • simple operation and control of functional buttons directly on operator graphic touch screen

  • centralized operation of communication equipment to place with permanent service

  • possibility of connecting any number of terminals in each department

  • connection of up to ten departments into merged operation with preservation of complete functions of all system elements

  • unlimited number of call places

  • calling user using fast direct dialling

  • discreet voice connection of medical personnel with patients

  • relaying of messages via loudspeakers to all rooms within a department (central announcements)

  • display of patient data and localization of registration of patient presence on display of terminal

  • archiving of all patient calls with possibility of viewing on display of exchange or PC

  • possibility of automatic putting through of telephone call to bed of patient from unified telecommunication network

  • recording history of all types of calls and their protection in the case of a network failure

  • recording name of party

  • night-time operation

  • communication is via LAN, with use of the latest Vol technology

  • 10.4″ LCD panel with direct control on touch screen

  • ergonomic orientation of terminal

  • variable location on table or wall

  • LAN interface for connection to computer network

  • USB port for backing up data and SW upgrade

  • PHP server, online display of current state of the switchboard, display of history of calling directly in PC

Technical Data

  • Material: thermoplastic, stainless steel

  • Colour: white

  • Dimensions: 338 x 210-235 x 195 mm

  • Weight: 4 475 g

  • Power source: adapter 230V/12V/2A

Connection terminal CMT - 07 IP

codaco

Description & Function

  • Ensures connection of main terminal to system using patch cable

Technical Data

  • Material: Thermoplastic

  • Color: White, Light Blue

  • Dimensions: 82 x 82 x 23mm

  • Weight: 125g

Audio Connection AC

codaco

Description & Function
Connection of two analogue signal sources (for example, two radio receivers) for the transmission of two entertainment audio programmes in the system
Technical Data
Material: Thermoplastic
Color: White, Light Blue
Dimensions: 82 x 82 x 23mm
Weight: 325g
